MDC USA AUSRV Series Off-Road Trailer RVs For Sale
The AUSRV Series off-road trailers by MDC USA take your off-road adventures up a notch! These lightweight and easy to tow trailers are loaded with at-home comforts and are ultra durable so you can explore for years to come!
Durable construction includes a galvanized steel frame that will hold up through rugged terrain plus an X-TRACK independent suspension for optimal handling. You will always have a soft place to rest your head each night, storage space to keep your belongings tidy, and electrical features to keep your powered up.
For the perfect balance of rugged and comfortable, choose an AUSRV Series off-road trailer by MDC USA today!
-

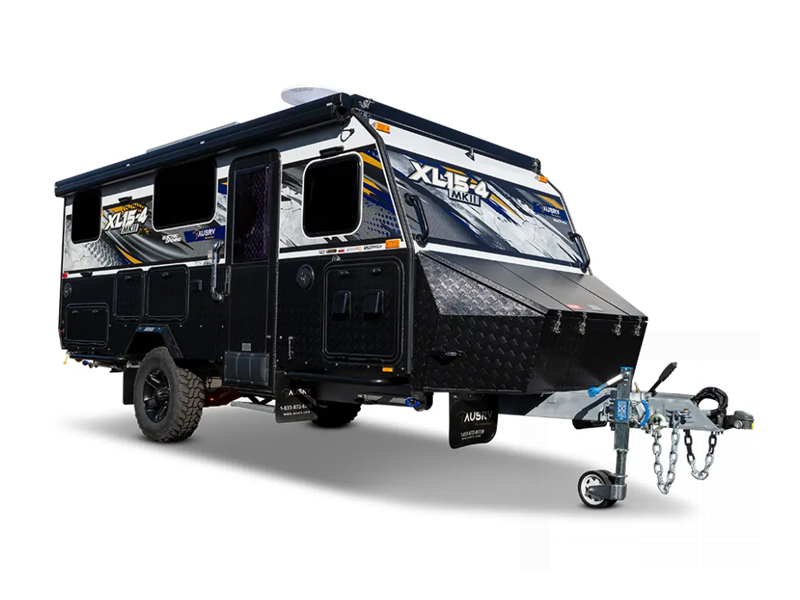

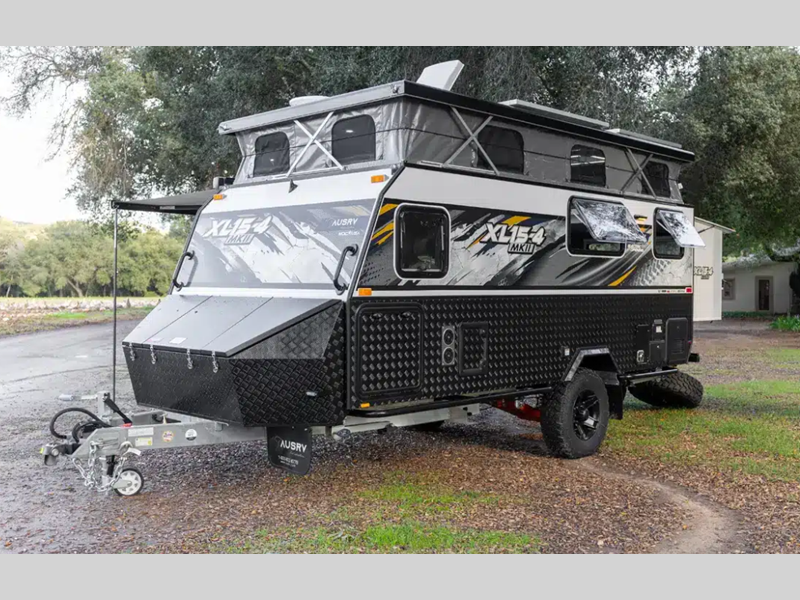

AUSRV Series XL15-4E MKII
MDC USA AUSRV Series off-road trailer XL15-4E MKII highlights: Queen Bed Air ... more about AUSRV Series XL15-4E MKII

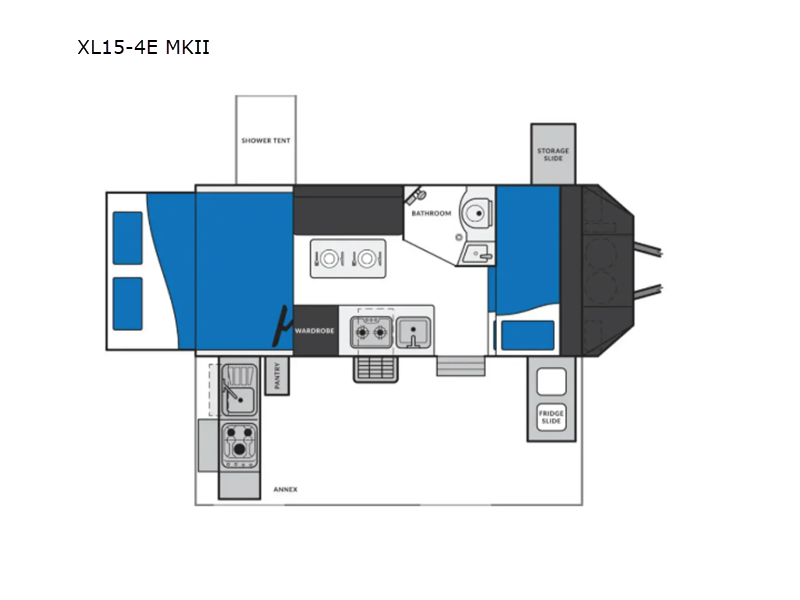

Have a question about this floorplan? Contact Us
Specifications
Sleeps 4 Length 22 ft Ext Width 7 ft 6 in Ext Height 8 ft 8 in Hitch Weight 401 lbs GVWR 6147 lbs Dry Weight 5032 lbs Fresh Water Capacity 62 gals Grey Water Capacity 21 gals Tire Size 265/75R16 Cooktop Burners 2 Number of Awnings 1 LP Tank Capacity 20 lbs Awning Info 13.8' 12V Electric Cassette Axle Count 1 Number of LP Tanks 2 Shower Type Wet/Bath Shower Similar Floorplans
Take a Virtual TourAUSRV Series Features:
Standard Features (2025)
General
- Sleeps 4
- 1 x Olympic queen size innerspring mattress

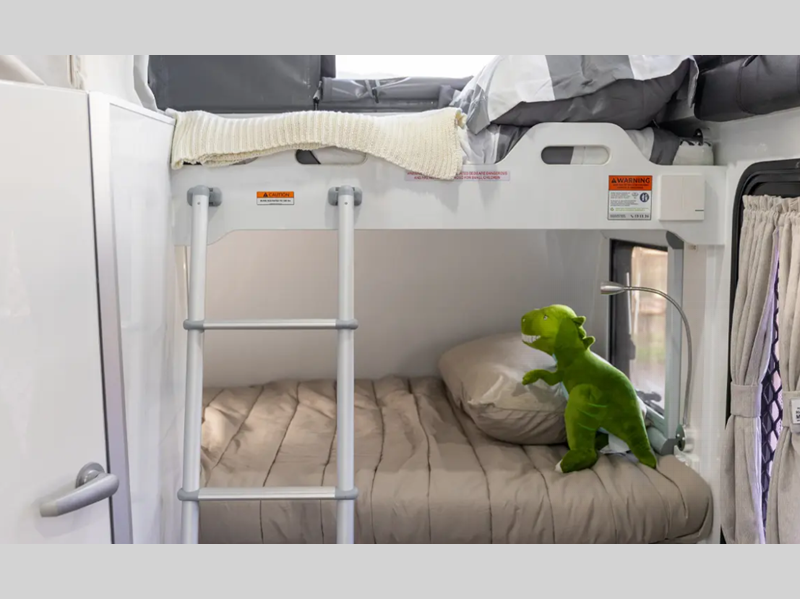

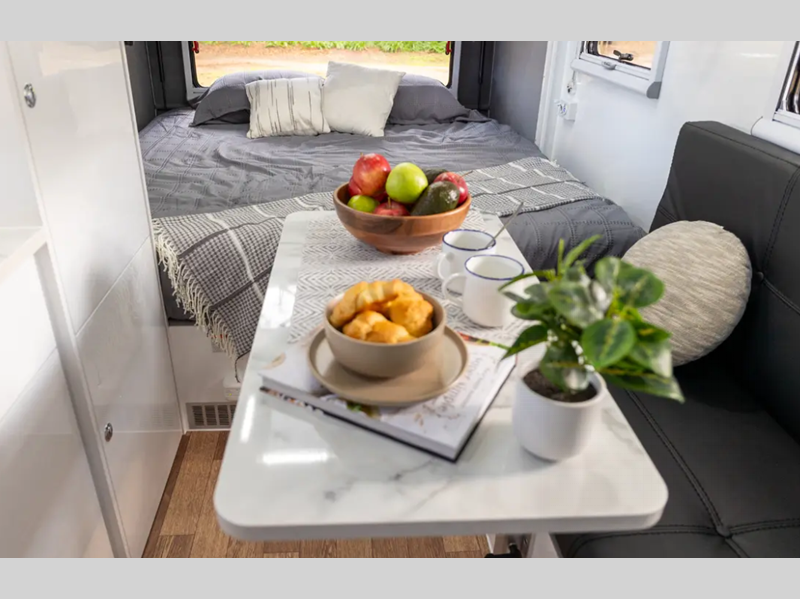

- 2 x twin XL foam bunks and a convertible dinette
- Mattress – 79” L x 69” W x 10” H
- Top Bunk – 80¾” L x 27½” W x 3¼” H
- Bottom Bunk – 80¾” L x 39½” (narrowest point) W x 3¼” H
- Combination of welded aluminum 2” x 1” and 3” x 1” hot rolled rectangle tube and 1” x 1” square aluminum alloy body construction
Chassis
- 6" x 2" – Q345 galvanized steel hot rolled rectangle tube
- Cruisemaster™ DO35 hitch
- ARK XO750 Jockey Wheel

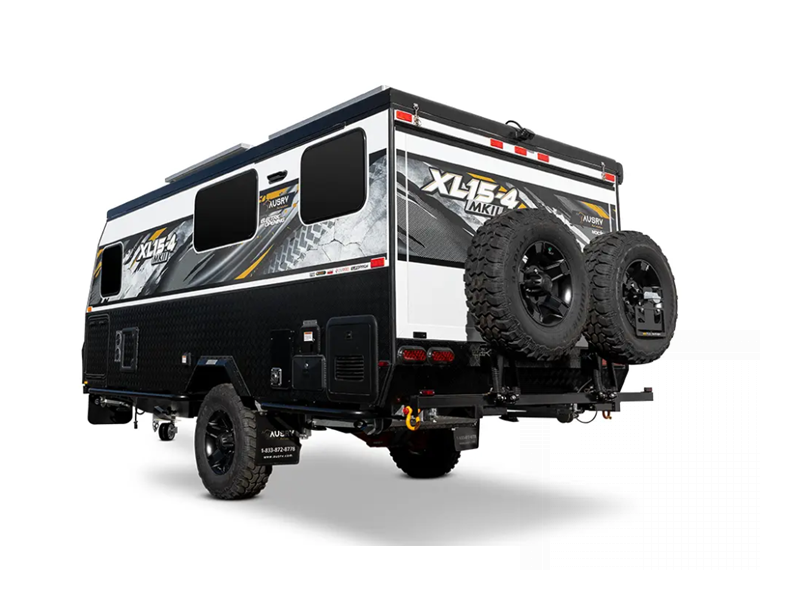

- 16 x 7.5 6/139.7 Aluminum alloy wheels fitted with 265/75R16 Goodride MT tires & 2 x spare wheels

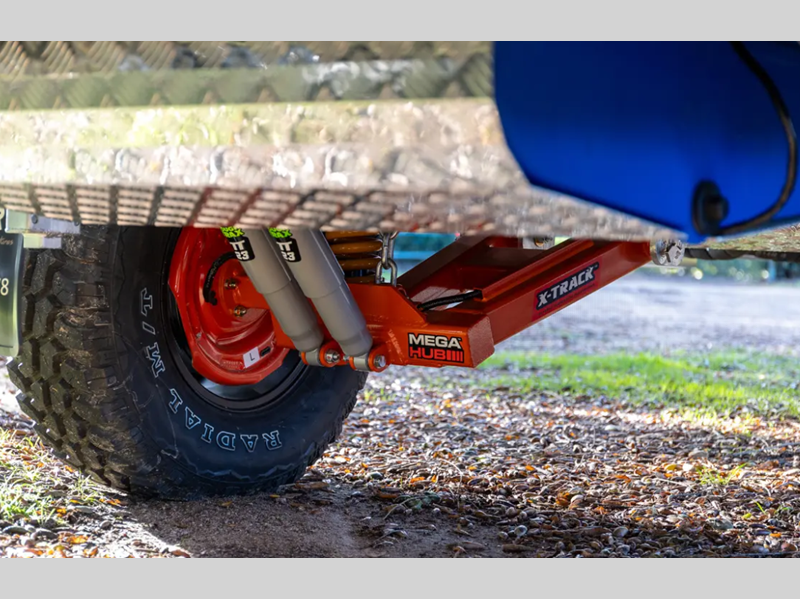

- X-TRACK independent coil spring suspension with 2 x TOUGH TRAX shock absorbers on each side
- 12" electromagnetic brakes with handbrake and drawbar mounted emergency breakaway system
- 4 x heavy duty lockable and adjustable drop down stabilizer legs
Exterior

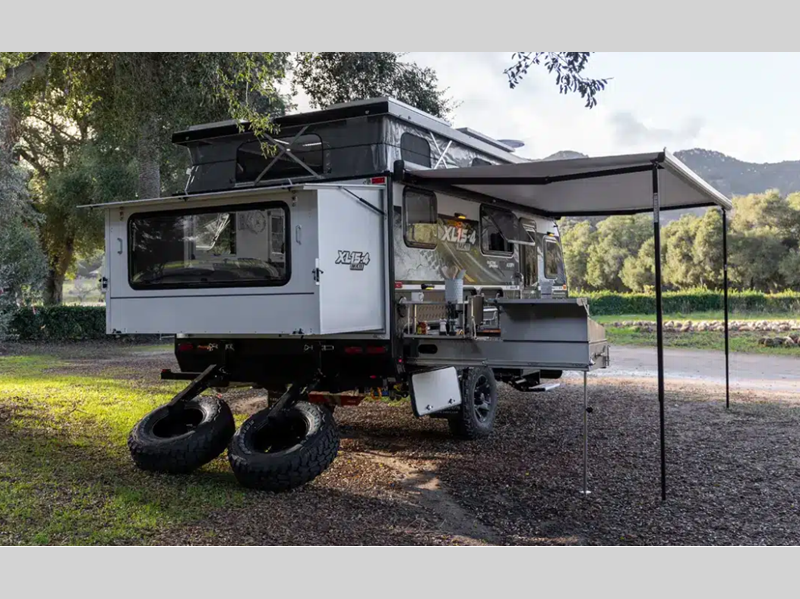

- 13.8' 12V electric cassette awning
- Full annex, enclosed roof, walls, floor and draft skirt
- 2 x 20lbs propane cylinder and cylinder holders
- 2 x 5 gallon jerry can holders

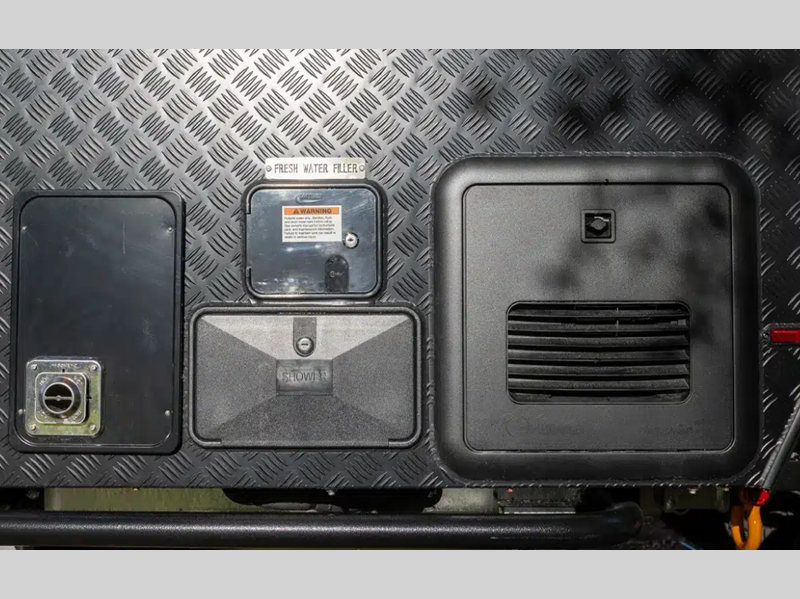

- 2 x 31 gallon fresh water tanks + 1 x 21 gallon grey water tank
- Water delivery – 12V electric marine diaphragm pump
- Cold Weather Pack includes tank heating pads, HWS electric anti-freeze kit, LiFePRO+® integrated heating and insulated water lines

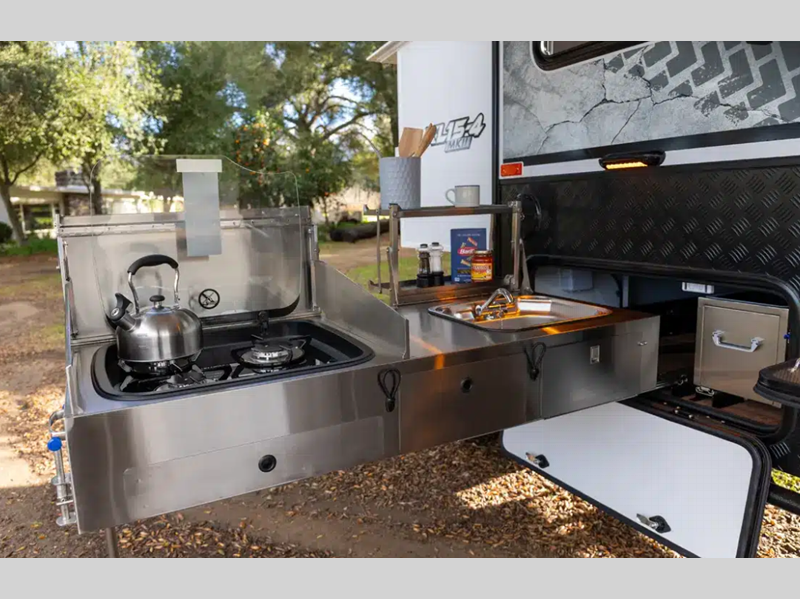

- External Slide out stainless steel body with propane cooktop & washboard sink with plumbed hot & cold water supply
- Chequer plate stone guard & propane storage locker with forward-facing mud flap protection

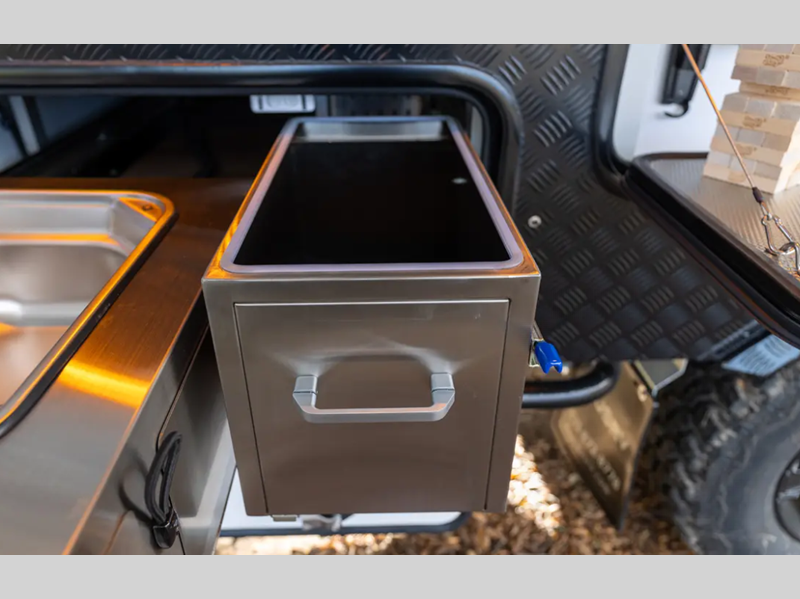

- Fridge Slide – 39½” L x 21½” H x 19¼” H
- Integrated front toolbox
- Manually operated pull-down entry step
Interior

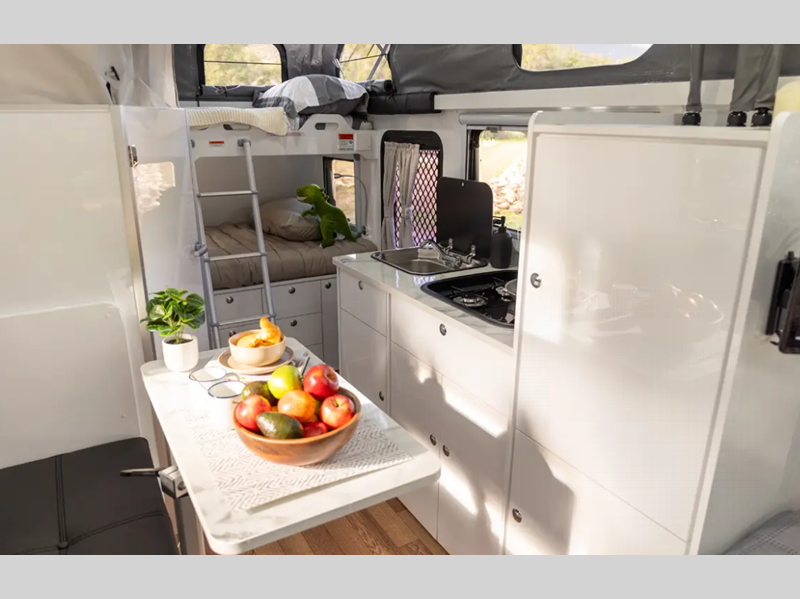

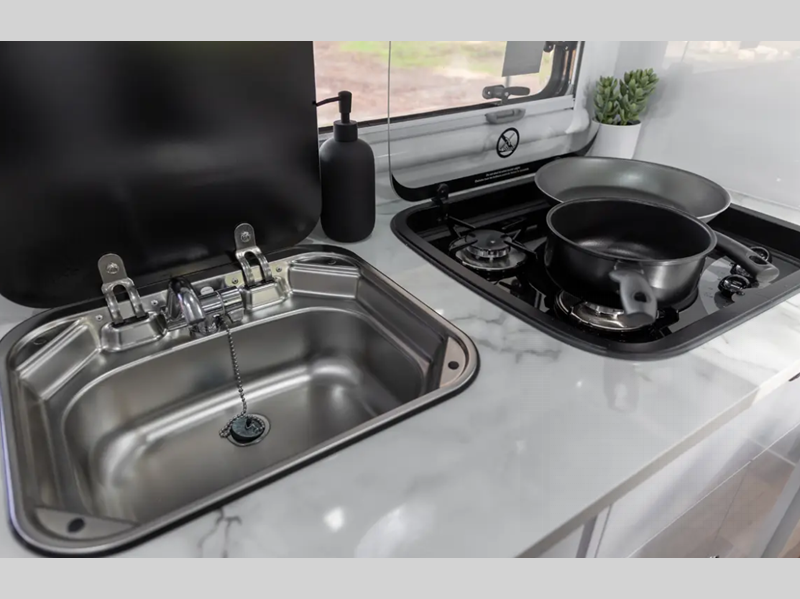

- Internal laminated benchtop with glass lid plumbed sink and propane cooktop

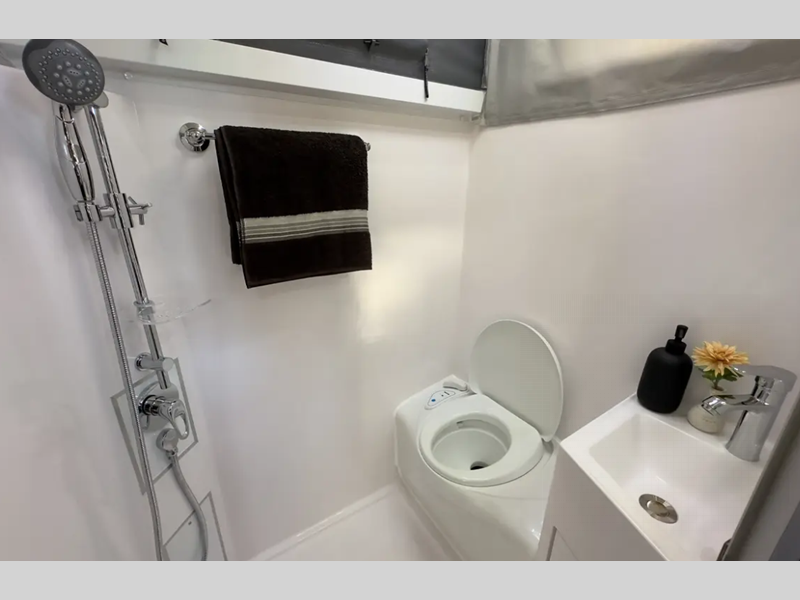

- Thetford C400 cassette toilet
- Hot & cold plumbed wet bath
Major Appliances
- Dometic Penguin II High Efficiency Low Profile Rooftop Air Conditioner
- Truma Aquago Comfort Plus instant hot water system (propane-operated)
- Dometic DFSD 12111 Furnace (propane operated)
Safety Features
- Trail-Assure™ BG-5000 – electronic stability control with asymmetric braking (offroad ready)
- 2.4GHz digital wireless rear view camera + 7" portable monitor
- MDC LOK – coupling lock
Electrical

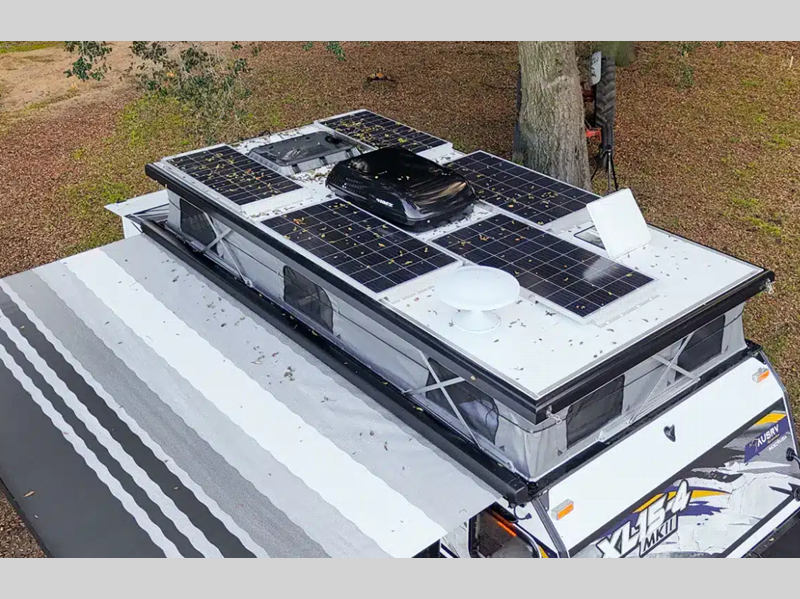

- 4 x 175W Solar Panels (700W total)
- LiFePRO+® 12V 200Ah Lithium Iron Phosphate battery
- BMPRO Battery Plus35-11-HA Battery Management System with RVVIEW2 battery monitor and BC300 external shunt
- AIMS Power 2000W Pure Sine Wave Inverter
- Internal 12V LED lighting throughout with wireless switching
- External 12V LED lighting throughout, awning and offside white and yellow (bug light) wall lighting with blue light up entry door grab handle, position markers, indicator & stop/tail lights
- Light Connection Plug – 7-way trailer connector (SAE J2863 type) + 1 x 50A Anderson plug
- Stereo head unit with internal & external speakers
- HD LED TV with 12V compatibility, USB and full motion TV bracket
Internal Power Outlets
- 6 x 12V accessory sockets
- 5 x 5V dual USB charging ports (1A & 2A split)
- 1 x F-type TV outlet
- 4 x 110V double pole outlets
External Power Outlets
- 1 x Anderson plugs
- 1 x 12V accessory socket
- 1 x F-type TV outlet
- 1 x 110V double pole outlets
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
